Makita AN613 Pneumatic Coil Nailer, 200 to 300 Magazine, 15 deg Collation, Wire Collation, 1-1/2 to 2-1/2 in L Fastener

  • Model Number: AN613
  • Store SKU: loading
  • Makita AN613 Pneumatic Coil Nailer, 200 to 300 Magazine, 15 deg Collation, Wire Collation, 1-1/2 to 2-1/2 in L Fastener

    • Supplier SKU: loading
    • Web SKU: 103170656
  • Product Code: 08838189752
    • Availability:

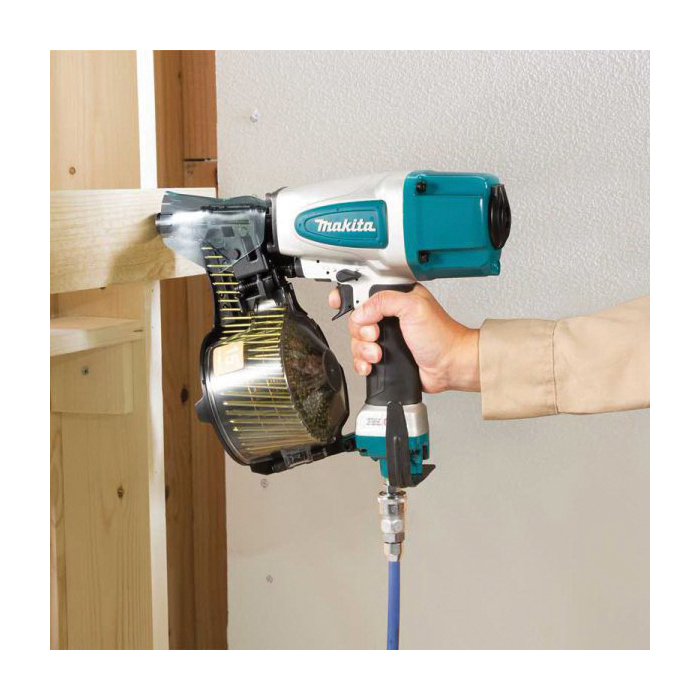

Makita AN613

Makita Pneumatic Coil Nailer, 1/4 in Air Inlet, Air Consumption: 3.2 cfm, Air Pressure: 70 to 120 psi, Magazine Capacity: 200 to 300, Collation Angle: 15 deg, Collation Type: Wire, Fastener Type: Offset Round Head, Fastener Size: 1-1/2 to 2-1/2 in L, Triggering Mode: Contact Actuation, Single Sequential, Ergonomic Rubberized Handle, Housing Material: Aluminum, Dimensions: 10-7/8 in L x 5 in W x 12-1/2 in H, Includes: Air Fitting, Tool Hook

Air Consumption : 3.2 cfm
Air Inlet Size : 1/4 in
Air Pressure : 70 to 120 psi
Collation Angle : 15 deg
Collation Type : Wire
Dimensions : 10-7/8 in L x 5 in W x 12-1/2 in H
Fastener Size : 1-1/2 to 2-1/2 in L
Fastener Type : Offset Round Head
Handle Type : Ergonomic Rubberized
Housing Material : Aluminum
Includes : Air Fitting, Tool Hook
Magazine Capacity : 200 to 300
Triggering Mode : Contact Actuation, Single Sequential
  • Pneumatic coil nailer powered by normal pressure air and designed to comply with ISO and other standards
  • Built-in air duster helps clean dust and debris off floors and other surfaces
  • Further improved rapid fire function in contact actuation mode
  • Low noise and low recoil, the mechanisms of trigger valve and head valve have been redesigned from AN611 to reduce air leak and recoil, providing comfortable operation
  • Tool less depth adjustment engineered for more precise flush and countersink nailing
  • Two operation modes single sequential actuation mode and contact actuation mode
  • Single sequential actuation mode is featured to comply with ISO and other standards
  • Easy loading canister with nail size adjustment provides maximum versatility
  • Multi-directional exhaust port directs exhaust air away from operator
  • Easy-to-grip handle anti-slip ribs added to the grip rubber provides more control
  • https://assets.unilogcorp.com/187/ITEM/DOC/Makita_103170656_Catalog.pdf pdf Catalog
  • https://assets.unilogcorp.com/187/ITEM/DOC/Makita_103170656_Owners_User_Manual.pdf pdf Owners/User Manual
  • https://assets.unilogcorp.com/187/ITEM/DOC/Makita_103170656_Specification_Sheet.pdf pdf Specification Sheet
