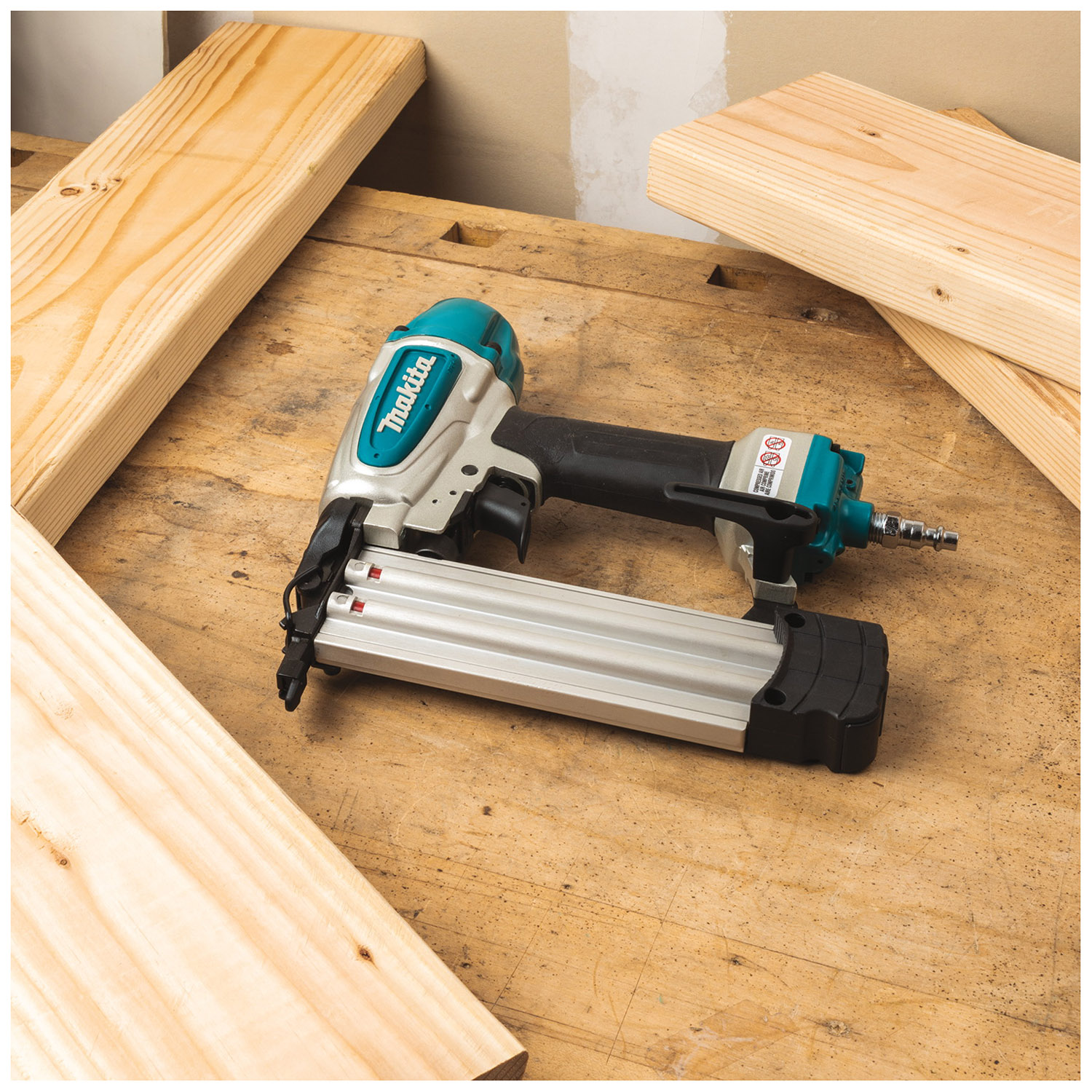

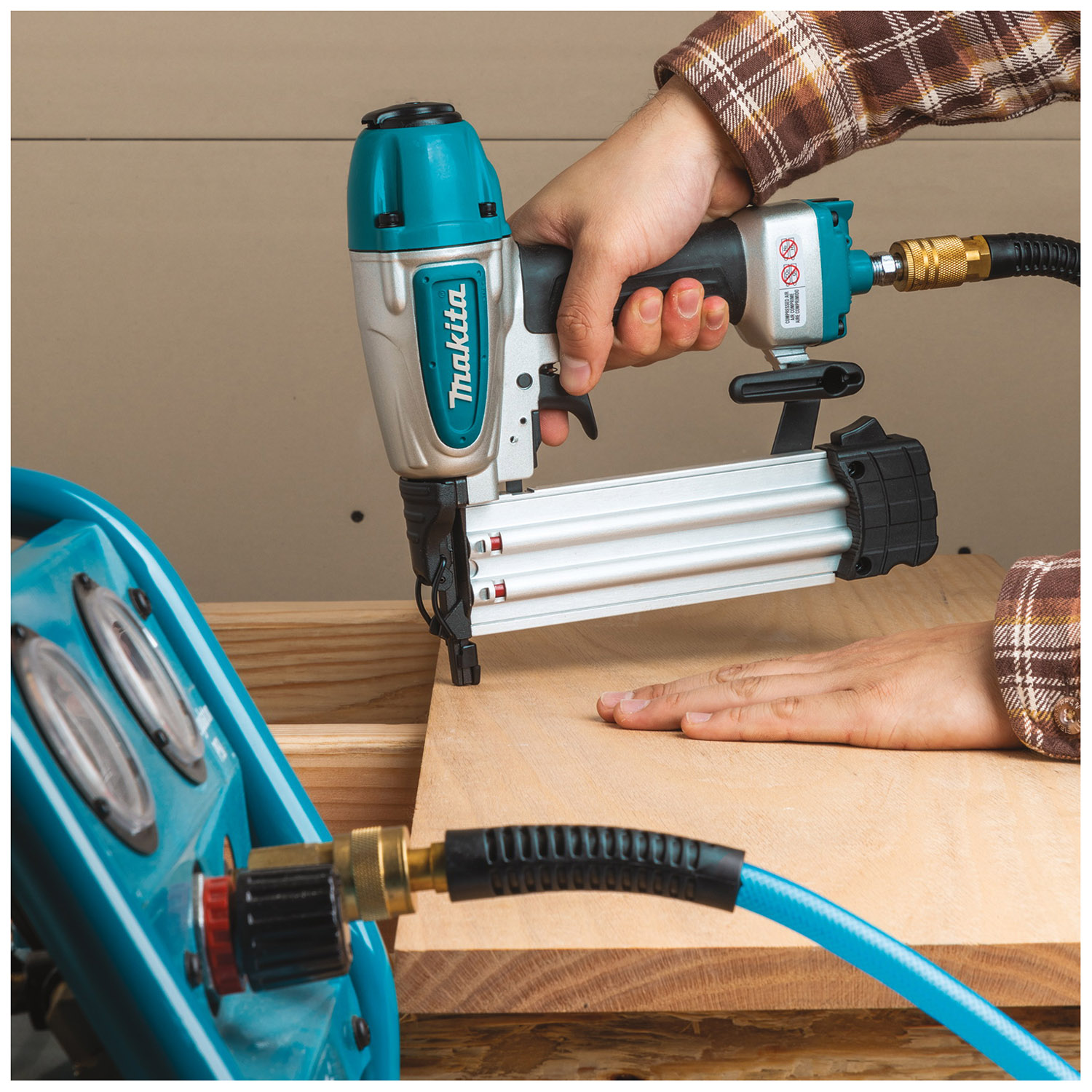

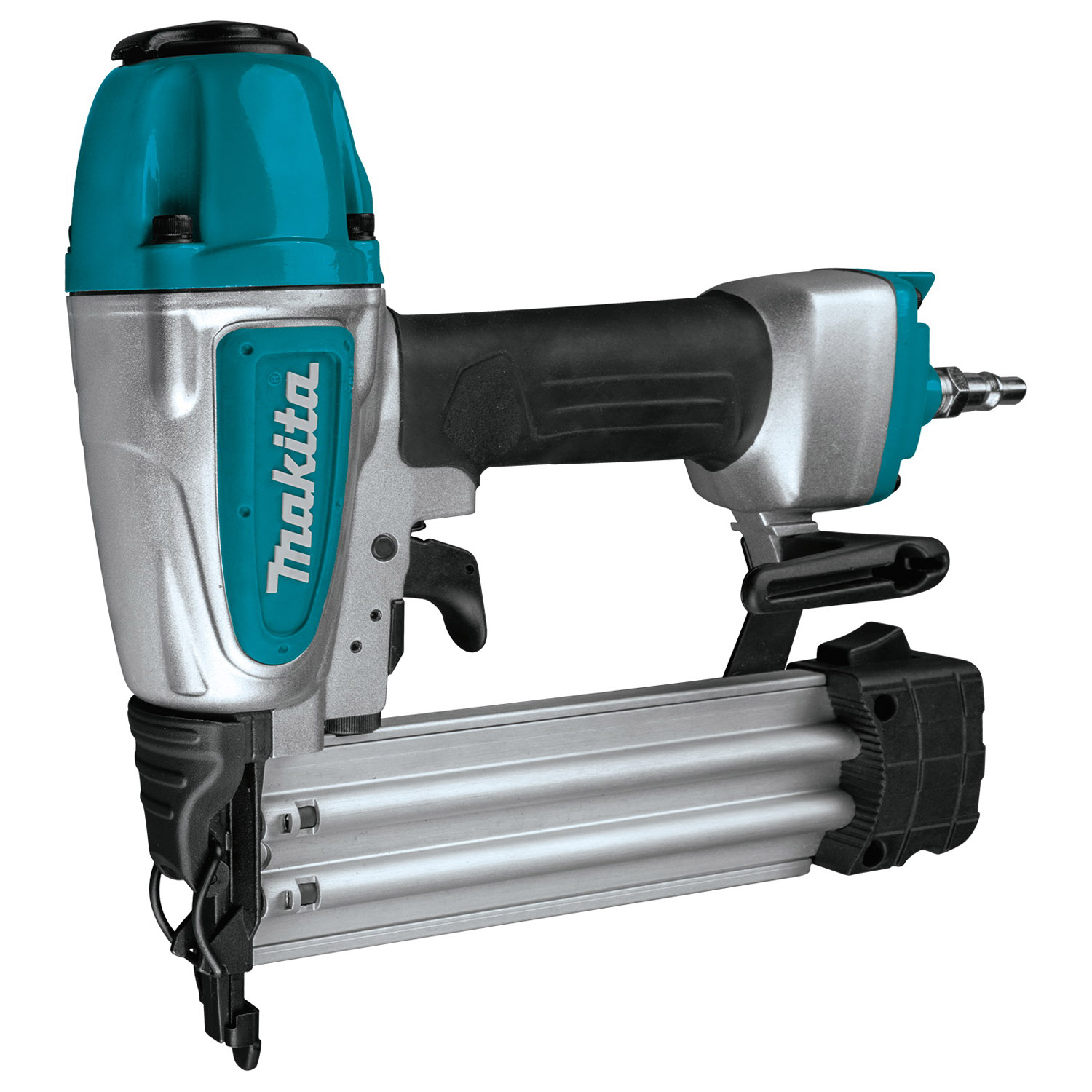

The Makita® 18 ga 2 in brad nailer (model AF506), features a durable and compact design with ease-of-use features including a narrow nose design that makes it ideal for a wide variety of finish applications. The AF506 can operate from 70 to 120 psi and drives a range of 18 ga brad nails from 5/8 to 2 in and has a magazine capacity up to 100 nails. The cast and machined nose piece is engineered for precise contact with the workpiece, with a non-marring rubber nose engineered to protect the work surface. Additional features include an ultra-narrow nose design that is ideal for fastening in confined areas and a convenient "tool-less" depth adjustment dial that can be set for a wide variety of finish applications. For added convenience, the multi-directional exhaust port rotates 360 deg to direct exhaust air away from the user. The AF506 is engineered for driving a range of 18 ga brad nails from 5/8 to 2 in into hard or soft wood applications and is ideal for trim work, baseboard and crown moulding installation, flooring and other woodworking applications.
| Air Consumption | : | 2 scfm |
| Air Inlet Size | : | 1/4 in |
| Air Pressure | : | 70 to 120 psi |
| Color | : | Teal |
| Dimensions | : | 9-7/8 in L x 2-3/4 in W x 10-1/8 in H |
| Exhaust Type | : | Multi-Directional |
| Fastener Size | : | 5/8 to 2 in |
| Fastener Type | : | Brad Nail |
| Hose Size | : | 1/4 in |
| Housing Material | : | Aluminum |
| Includes | : | (1) Pneumatic Nailer Oil, (2) No-Mar Tips, (1) Safety Glasses, (1) Air Fitting, (1) Tool Case |
| Magazine Capacity | : | 100 |
| Magazine Loading | : | Side |
- Narrow nose design allows easy nailing access in confined areas
- "Tool-less" easy to clear nose for fast and easy nail extraction
- Easy to use "tool-less" depth adjustment dial for a wide variety of finish applications
- Built-in air duster provides convenient air flow to clear work surface
- Powerful motor drives a range of 18 ga brad nails from 5/8 to 2 in into hard or soft wood applications
- Aluminum body, magazine and cylinder for strength and durability, weighs only 2.9 lb
- Cast and machined nose piece for precise contact
- Non-marring rubber nose and bumpers protect the wood's surface from being scratched or damaged
- Reversible belt hook allows the tool to remain close
- Dual nail reload indicator window alerts the user when to reload nails to avoid blank drives
