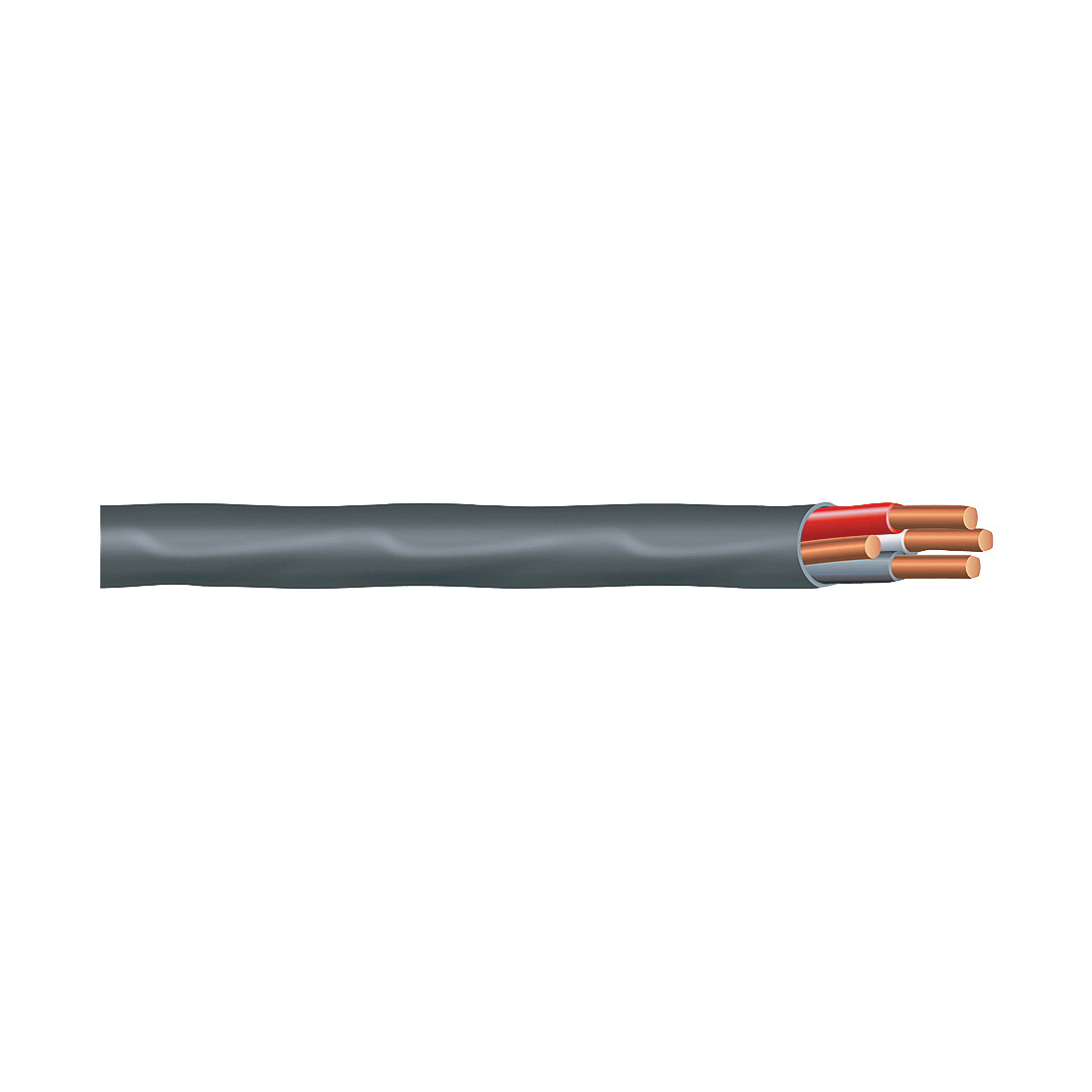

Romex® 6/3NM-W/GX500
Romex®
Send Print

Romex® 6/3NM-W/GX500 Sheathed Cable, 6 AWG Wire, 3-Conductor, 500 ft L, Copper Conductor, PVC Insulation, Nylon Sheath

  • Model Number: 6/3NM-W/GX500
  • UPC: 032886263712
  • Store SKU: loading

  • Romex® 6/3NM-W/GX500 Sheathed Cable, 6 AWG Wire, 3-Conductor, 500 ft L, Copper Conductor, PVC Insulation, Nylon Sheath

    • Supplier SKU: loading
    • Web SKU: 100060489
  • Product Code: 312
    • Availability:
Romex® 6/3NM-W/GX500

Inner conductors are type THHN, rated 90 deg C, 600 V. Solid strands. Outer jacket is PVC, rated at 75 deg C. Amp rating of the product is limited to that for 60 deg C rated conductors per the national Electric Code Article 336. Dwellings not exceeding three floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.

Bend Radius : 2.7 in
Conductor Insulation : PVC
Conductor Material : Copper
Current Rating : 55 A
Length : 500 ft
Number Of Conductors : 3
Operating Temperature : 90 deg C
Resistance : 0.411 Ohm
Sheath Color : Black
Sheath Diameter : 0.672 in
Sheath Material : Nylon
Stranded/Solid : Stranded
Strands per Conductor : 7
Type : NM-B
Voltage Rating : 600 V
Wire Size : 6 AWG
  • SIMpull jacket designed for easier pulling
  • Color-coded jacket
