Firman P03607 Portable Generator, 20/30 A, 120 V, Gasoline, 5 gal Tank, 14 hr Run Time, Recoil Start

  • Model Number: P03607
  • UPC: 840876136072
  • Store SKU: loading
  • Firman P03607 Portable Generator, 20/30 A, 120 V, Gasoline, 5 gal Tank, 14 hr Run Time, Recoil Start

    • Supplier SKU: loading
    • Web SKU: 101897240
  • Product Code: 84087613607
    • Availability:

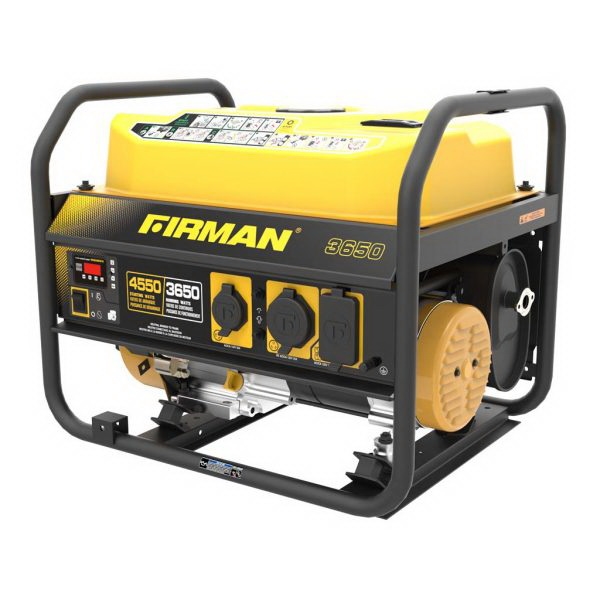

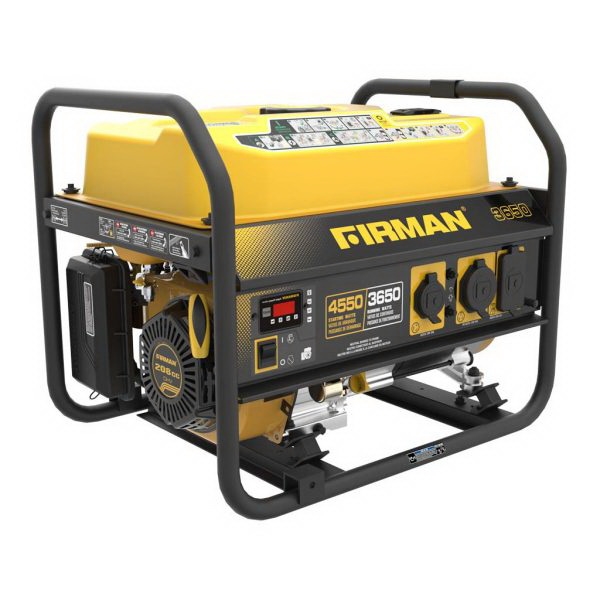

Firman P03607

The Firman P03607 generator features 4550 W starting and 3650 W running. Power is supplied by our Max Pro Series 208 cc Firman engine which runs cool and efficient thanks to its phoenix fat head block. Our Whisper series muffler keeps the P03607 running a quiet 68 dB well below the standards set by the national parks service and our spark arrester has been approved by the USDA forest service. The industry-leading 5 gal fuel capacity provides a whopping 14 hr of run time. Our rubberized thresher handle makes recoil starting a snap, even with bulky gloves. The Firman volt lock automatic voltage regulator ensures clean, consistent power output from the Firman power stream alternator. Pertinent information is at your fingertips with our 4-in-1 data minder measuring volts, hertz, hours and a low oil indicator. The durable, compact tubular roll cage frame design is built for years of use. Just add gas. Everything you need comes standard in the box including, oil, funnel, owner’s manual, spark plug wrench and two wrenches to remove protective shipping brackets.

Current Rating : 20/30 A
Dimensions : 17.5 in L x 23.2 in W x 18.5 in H
Engine Specifications : 208 cc Displacement
Engine Type : OHV
Frequency Rating : 60 Hz
Fuel Type : Gasoline
Includes : Engine Oil Bottle, Oil Funnel, SP Wrench 2 x Open/Wrench 10 x 12 Tool Kit, Volt Lock Automatic Voltage Regulator
Run Time : 14 hr
Sound Level : 68 dB
Start Type : Recoil
Tank Capacity : 5 gal
Tank Material : Steel
Type : Open Frame
Voltage Rating : 120 V
Wattage Rating : 3650/4550 W
  • Reliable recoil start
  • Phoenix fat head block for enhanced engine efficiency
  • Outlets, one TT-30R (RV Ready) 120 V and 30 A, one L5-30R 120 V and 30 A Twistlock, two 5-20R Duplex 120 V and 20 A
