Eco-Flo EFSUB5-123
Eco-Flo
Send Print

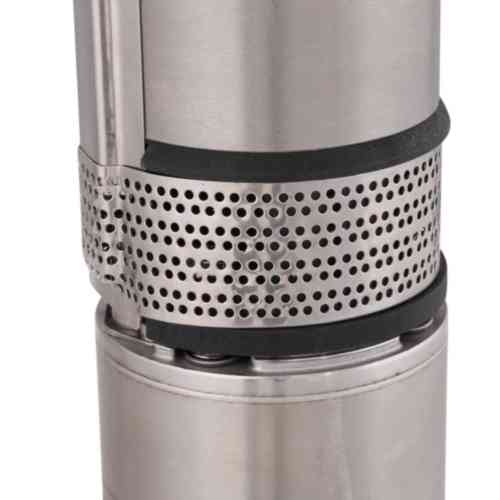

Eco-Flo EFSUB5-123 Submersible Pump, 230 V, 0.5 hp, 1-1/4 in Outlet, 12 gpm, Cast Iron/Stainless Steel Housing Material

  • Model Number: EFSUB5-123
  • UPC: 856594003725
  • Store SKU: loading

  • Eco-Flo EFSUB5-123 Submersible Pump, 230 V, 0.5 hp, 1-1/4 in Outlet, 12 gpm, Cast Iron/Stainless Steel Housing Material

    • Supplier SKU: loading
    • Web SKU: 102253438
  • Product Code: 85659400372
    • Availability:
Eco-Flo EFSUB5-123

Eco-Flo Submersible Pump, 0.5 hp, 12 gpm, 50 psi, Outlet Connection Size: 1-1/4 in, 230 V, Frequency Rating: 60 Hz, Housing Material: Cast Iron/Stainless Steel, Black/Silver, Includes: Check Valve, Additional Information: 22.1 in L x 4 in W Dimensions

Additional Information : 22.1 in L x 4 in W Dimensions
Color : Black/Silver
Dimensions : 22.1 in L x 4 in W
Flow Rate : 12 gpm
Frequency Rating : 60 Hz
HP Rating : 0.5 hp
Housing Material : Cast Iron/Stainless Steel
Includes : Check Valve
Material : Cast Iron/Stainless Steel
Outlet Connection Size : 1-1/4 in
Pressure Rating : 50 psi
Voltage Rating : 230 V
  • Stainless steel pump shaft is precision ground for exact bearing fit and straightness
  • Precision molded impellers and diffusers, 1-1/4 in FNPT discharge cast iron discharge connection, includes built-in check valve
  • Stainless steel pump housing for maximum protection against corrosion stainless steel splined shaft
  • Self-healing resin system
  • Hermetically sealed windings
  • Filter check valve
  • Kingsbury type thrust bearing
  • Pressure equalizing diaphragm

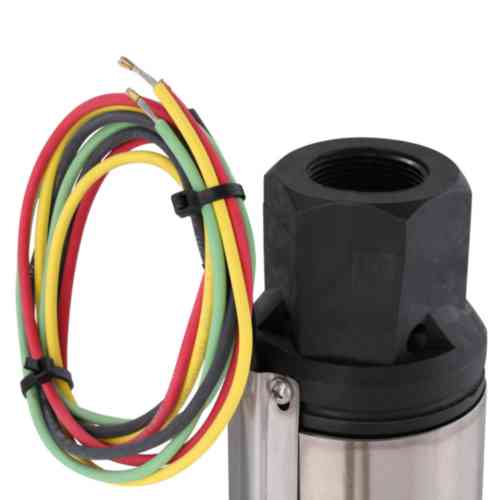

  • Removable water-bloc lead connector
  • NEMA mounting dimensions, three-wire
