Eco-Flo EFSUB10-123
Eco-Flo
Send Print

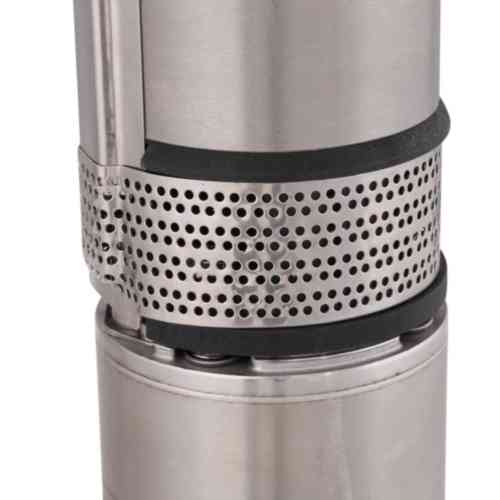

Eco-Flo EFSUB10-123 Submersible Pump, 230 V, 1 hp, 1-1/4 in Outlet, 12 gpm, Cast Iron/Stainless Steel Housing Material

  • Model Number: EFSUB10-123
  • UPC: 856594003763
  • Store SKU: loading

  • Eco-Flo EFSUB10-123 Submersible Pump, 230 V, 1 hp, 1-1/4 in Outlet, 12 gpm, Cast Iron/Stainless Steel Housing Material

    • Supplier SKU: loading
    • Web SKU: 102253433
  • Product Code: 85659400376
    • Availability:
Eco-Flo EFSUB10-123

Eco-Flo Submersible Pump, 1 hp, 12 gpm, 50 psi, Outlet Connection Size: 1-1/4 in, 230 V, Frequency Rating: 60 Hz, Housing Material: Cast Iron/Stainless Steel, Includes: Check Valve, Additional Information: 29.3 in L x 4 in W Dimensions

Additional Information : 29.3 in L x 4 in W Dimensions
Dimensions : 29.3 in L x 4 in W
Flow Rate : 12 gpm
Frequency Rating : 60 Hz
HP Rating : 1 hp
Housing Material : Cast Iron/Stainless Steel
Includes : Check Valve
Material : Cast Iron/Stainless Steel
Outlet Connection Size : 1-1/4 in
Pressure Rating : 50 psi
Voltage Rating : 230 V
  • Stainless steel pump shaft is precision ground for exact bearing fit and straightness
  • Precision molded impellers and diffusers, 1-1/4 in FNPT discharge cast iron discharge connection, includes built-in check valve
  • Stainless steel pump housing for maximum protection against corrosion stainless steel splined shaft
  • Self-healing resin system
  • Hermetically sealed windings
  • Filter check valve
  • Kingsbury type thrust bearing
  • Pressure equalizing diaphragm

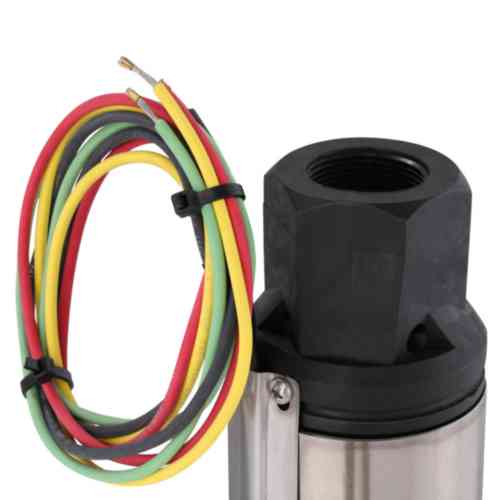

  • Removable water-bloc lead connector
  • NEMA mounting dimensions, three-wire
