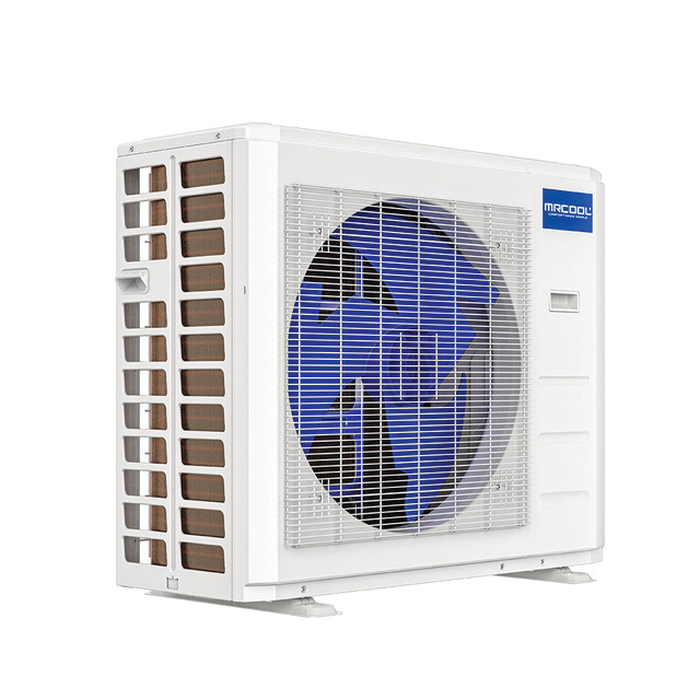

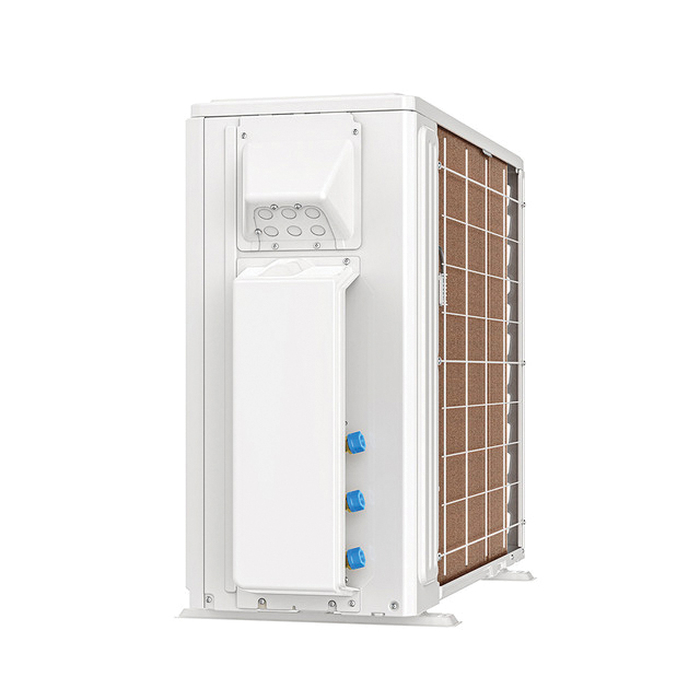

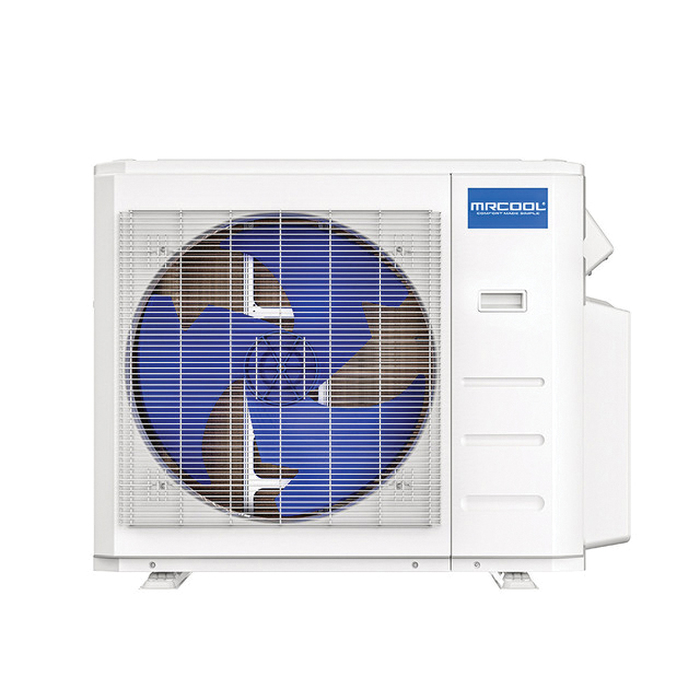

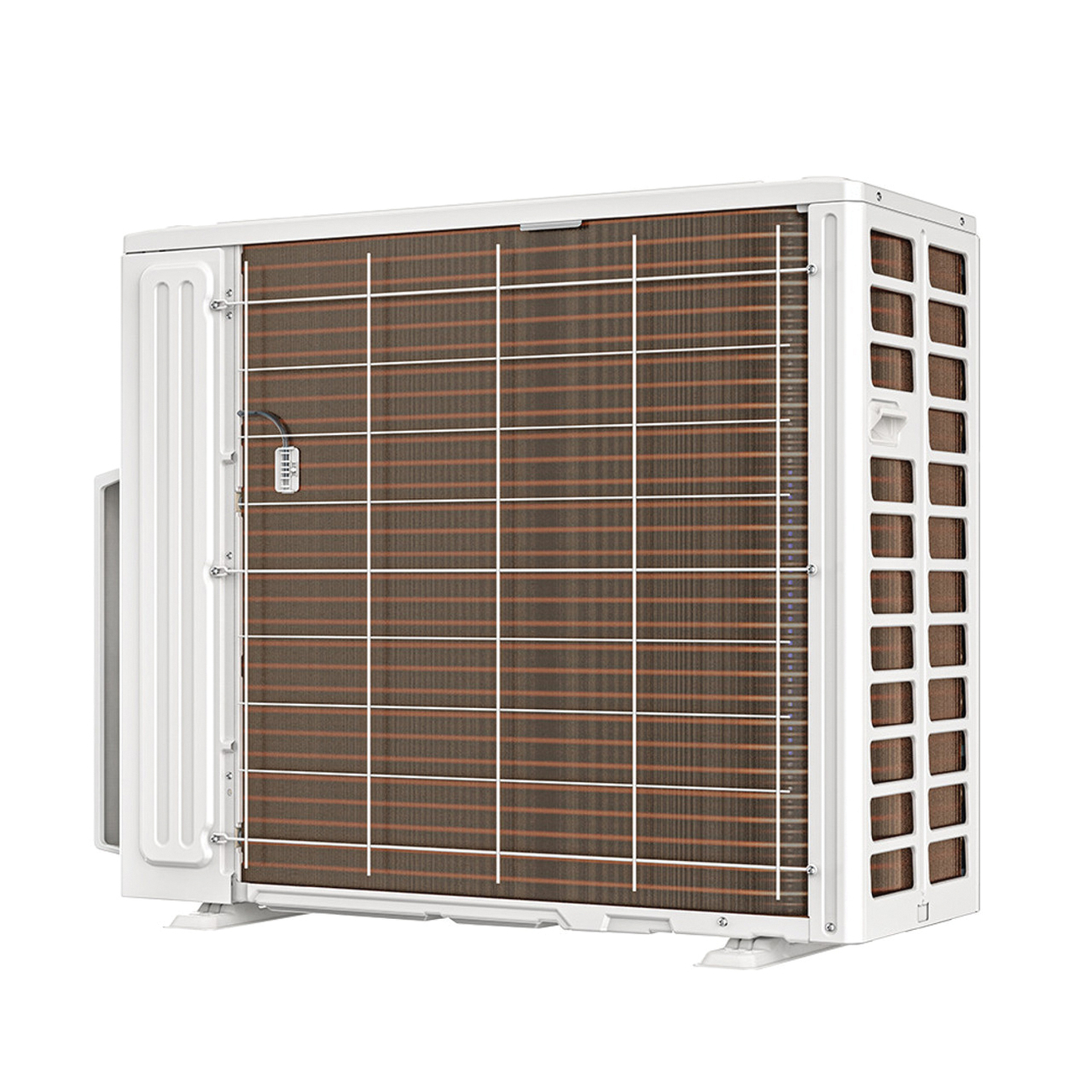

Mrcool DIY Series DIY-MULTI4-27HP230D-O 5th Generation Mini-Split Condenser, 208/230 V, 26,000 Btu/hr BTU, 2.25 ton Tons

  • Model Number: DIY-MULTI4-27HP230D-O
  • UPC: 840255587457
  • Store SKU: loading
  • Mrcool DIY Series DIY-MULTI4-27HP230D-O 5th Generation Mini-Split Condenser, 208/230 V, 26,000 Btu/hr BTU, 2.25 ton Tons

    • Supplier SKU: loading
    • Web SKU: 103839868
  • Product Code: 84025558745
    • Availability:
Mrcool DIY-MULTI4-27HP230D-O

If you're in need of comfort, our new 5th generation MRCOOL DIY® 27k Btu multi-zone ductless mini-split condenser is the ideal solution! The acronym in the name is true - you can install this system on your own, without the assistance of an HVAC professional! You'll save money in more ways than one, too, due to the incredible efficiency of this system, which attains a SEER2 rating of 23 and a HSPF2-4 rating of 9.5. This condenser in particular is able to support up to four air handlers, meaning it can provide heat and air conditioning to four separate spaces equaling a total of 1000 to 1200 sq-ft. This system is unique because it utilizes special, patented Quick Connect® line sets that are pre-charged with R-454B, which is a newer refrigerant that allows the system to be even more sustainable and efficient than its previous generation. These line sets essentially link to the fittings of the condenser and the air handler, making the installation process a breeze. These line sets are sold separately. Once installed, this condenser will be able to do more than you expect! Our SmartHVAC app gives you the opportunity to integrate the system with your phone and Amazon Alexa or Google Home, which will let you control your comfort using just your voice. The app also gives you the ability to customize your comfort with a range of features, from setting schedules to monitoring the system's energy use. You deserve to have your comfort meet your standards and this unit can do that for you. Should something happen to the system, we've got your back. The DIY® Series boasts one of the foremost warranties in the HVAC industry - a 5 years parts warranty, a 7 years compressor warranty and a limited lifetime replacement warranty if you enroll in the MRCOOL care program. Get the finest for your home and install a DIY®.

BTU Rating : 26, 000 Btu/hr
Color : White
Compressor Type : Rotary
Heating/Cooling Stage : 4
Line Set Length : 221.4 ft
Liquid Line Diameter : 1/4 in
Minimum Circuit Current : 23 A
Noise Level : 61 dBA
Overall Dimensions : 31.89 in H x 37.24 in W x 16.14 in D
Power Supply : 208/230 V
Refrigerant Type : R-454B
SEER Rating : 23
Suction Line Diameter : 3/8 in
Tons of Refrigeration : 2.25 ton
  • Easy DIY installation
  • Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit
  • Keep the included remote close by and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort
  • The MRCOOL Smart HVAC Controller® module and app fully support Google Assistant and Amazon Alexa out of the box
